BL3570-IG32

Product Name：
Brushless dc gear motor
Collect
  • Description



BL3570 The data table　　
Type：BL3570
NO.Test projectTest valuesUnit
1The rated voltageU N2424242424V
2ResistanceR1.263.121.8Ω
3Maximum output powerP2max116.5522.4744.3267.7477.38W
4Maximum efficiencyηmax7767726876%
5Maximum efficiencyno943049807460102008280rpm
6No-load currentI0.290.130.180.360.22A
7The maximum torqueMH472.08172.31226.91253.69356.98mN.m
8The friction torqueMF6.955.795.47.855.99mN.m
9Rate constantkn398.7214.47318.23438.14350.79rpm/V
10The potential constantkE2.514.663.142.282.85mV/rpm
11The torque constantkM23.9544.5330.0121.7927.22mN.m/A
12Constant currentkI0.040.020.030.050.04A/mN.m
13Speed/torque slopeΔn/ΔM19.9828.932.8840.2123.19rpm/mN.m
14The mechanical time constantτm7.4610.7912.2715.018.66ms
15The rotor inertiaJ35.6435.6435.6435.6435.64gcm2
16The angular accelerationαmax132.4648.3563.6771.18100.16103rad/s2
17The sensor
sensing
18Controller
DR3080
19weight
106g
20Operating temperature range
-30～+85
21Reversing way
Electronic commutation
22Rolling bearing
EZO&NMB
23Casing materialsηoptAluminum appearance, black anodized
24magnetsnoptndfeb
25The rotation directionMoptPositive &negative electronic commutation
Motor data when the maximum efficiency
26The output powerP2opt49.6611.4420.1133.5834.88W
27efficiencyηopt7767726876%
28speednopt82863460548971927208rpm
29Load currentIopt2.680.711.172.051.92A
30TorqueMopt57.2631.5835.0144.6246.24mN.m

(1)、I0 is motor no-load current, in this table does not include the current controller.

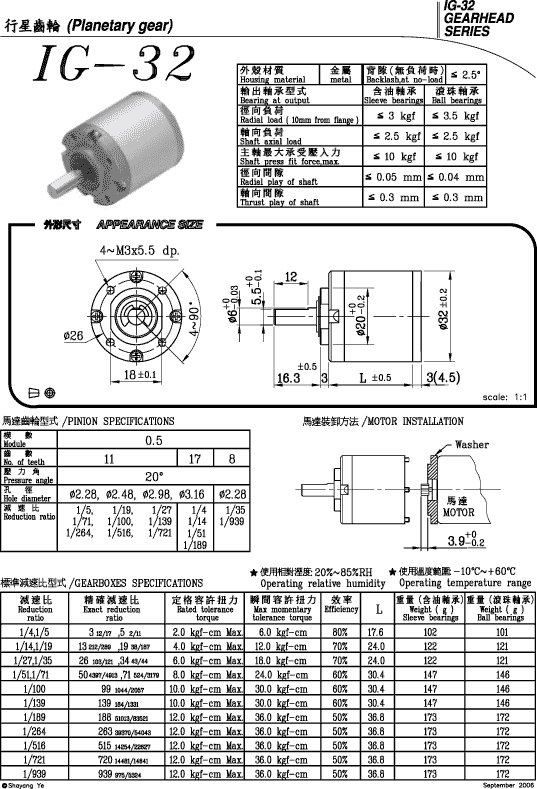

(2)、This model can be adapted gear box, as shown in the "gear".
